Drying method:
The unit carries out internal circulation dehumidification in the drying room, and uses the latent heat of water condensation to heat the air in the drying room.
Application fields:
food, flowers, traditional Chinese medicine decoction pieces, aquatic products, industrial and other industries.
Conventional models:
7 P, 15P, 25P
Product advantages:
1. Easy installation;
2. Closed drying; Clean and hygienic, zero pollution, zero emission;
3. It is not affected by region, season, environmental temperature and humidity; All-weather drying, stable energy efficiency;
4. It can recover the moisture of materials with high nutritional value.
|

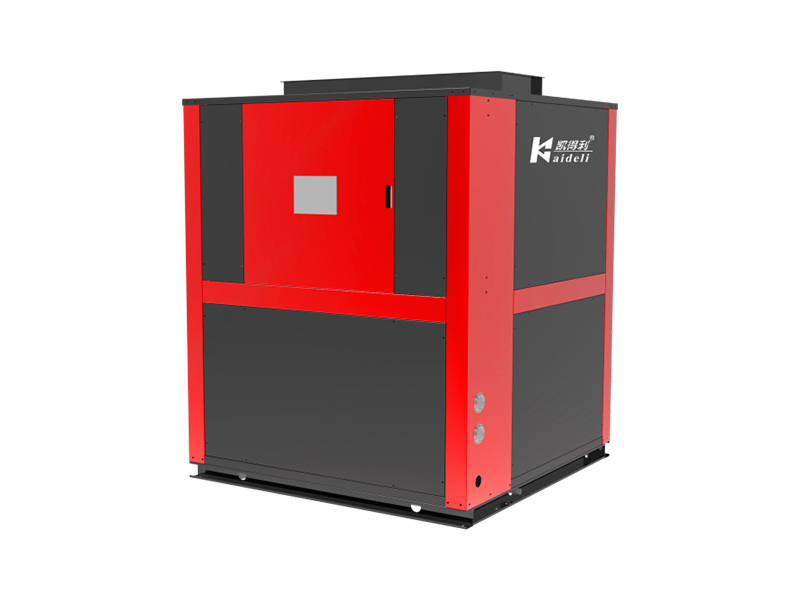

Product name |
? |
Air source heat pump dryer |
|
|
type |
/ |
Closed dehumidification all-in-one machine |
|
|
Product model |
/ |
NCYNB-45IIDXS/01 |
NCYNB-45IIDXS/01 |
|
Power form |
V/Ph/Hz |
380/3/50 |
380/3/50 |
|
Ingress protection |
/ |
IPX4 |
IPX4 |
|
Type of protection against electric shock |
/ |
Category I |
Category I |
|
Dehumidification capacity (50°C/80%) |
kg/h |
52 |
52 |
|
Dehumidification capacity (50°C/50%) |
kg/h |
30 |
30 |
|
Rated operating power of the heat pump |
kW |
12.5 |
12.5 |
|
Rated operating current of the heat pump |
A |
22 |
22 |
|
Electric heating power |
kW |
12 |
12 |
|
Maximum operating power of the heat pump |
kW |
30 |
30 |
|
Maximum operating current of the heat pump |
A |
50 |
50 |
|
Drying temperature |
°C |
20~75 |
20~75 |
|
Maximum working pressure on the high/low pressure side |
MPa |
3.0/0.75 |
3.0/0.75 |
|
Maximum working pressure on the drain/suction side |
MPa |
3.0/0.75 |
3.0/0.75 |
|
The maximum pressure of the evaporator |
MPa |
4 |
4 |
|
Refrigerant charge |
kg |
R134a/2X3.0 |
R134a/2X3.0 |
|
noises |
dB (A) |
≤70 |
≤70 |
|
Dimensions |
mm |
1610X1510X1885 |
1610X1510X1885 |
|
net weight |
kg |
650 |
|
| ? |

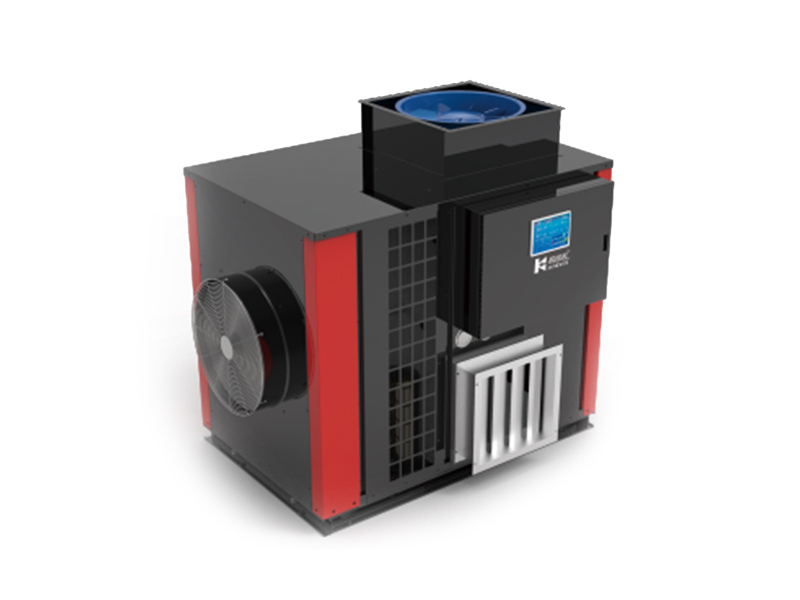

15HP closed rear air outlet |

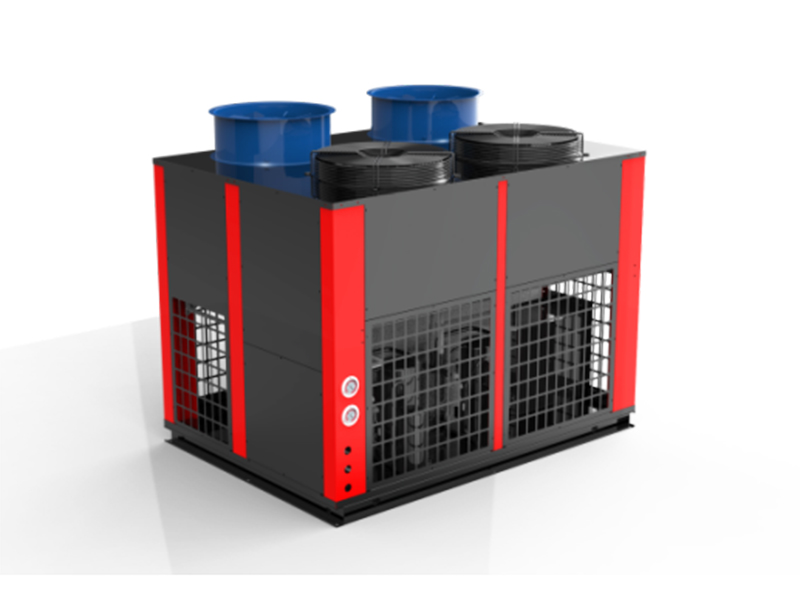

15HP closed upper air outlet |
|
The model, parameters and performance will be changed due to the improvement of the product, and the specific parameters are subject to the product nameplate.
